BEACON ANTI COLISION MICROMAX

€ 210.00

Specification

Dimensions – above surface (mm): 35 mm x 11 mm
Dimensions – above surface (inches): 1.378“ x 0.433“
Weight: Less 30 g / 1.05 oz
Operating voltage range: 9-32 V DC
Input power:
– Red
– White
 5.4W (peak)
7.8W (peak)
Input current:
– Red

– White

 0.39A @14V (peak)
0.19A @28V (peak)
0.56A @14V (peak)
0.28A @28V (peak)
Repetition rate of strobe: 50 cycles per minute
Ambient temperature: from -40°C to +85°C
from -40°F to +185°F
Overheat protection: Yes
Recommended size of mounting screw: M3
Reverse polarity protection: Yes
Over-Voltage spike protection: 60V / 1s
Under-Voltage protection: Yes, 8.5V
Over-Voltage protection: Yes, 33V
Waterproof, Dust-proof, Vibration-proof: Yes
Add To Wishlist
View Wishlist
Categorie:

Descriere

Anti-collision LED light – Red or White

Fully D0-160 tested and weighing less than 30 grams, MicroMax™ will help you comply with all the tightening and future regulations around operating small UAVs/MiniDrones and ensure SAFETY is included in your flight operations. Available in Red or White, the patented MicroMax™ provides a 360 degree arc of coverage. An amazing product from Aveo’s famous engineering prowess, which has made it the world market leader in UAV lighting by a wide margin.

NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT

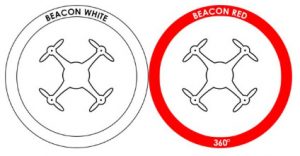

Drawing
